8STA6-24-08SN
Eaton (Souriau®) Free Plug/Cable Mount Motorsport Circular Connector, Shell Size 24, 8 Way, Female/Socket, Crimp Contacts , Orientation Normal
SKU
8STA62408SN
Manufacturer
Technical Specification
| Type: | Motorsport Circular Connectors |
|---|---|
| Range: | 8STA |
| Specification: | Commercial |
| Total number of contacts: | 8 |
| Contact gender: | Female/Socket |

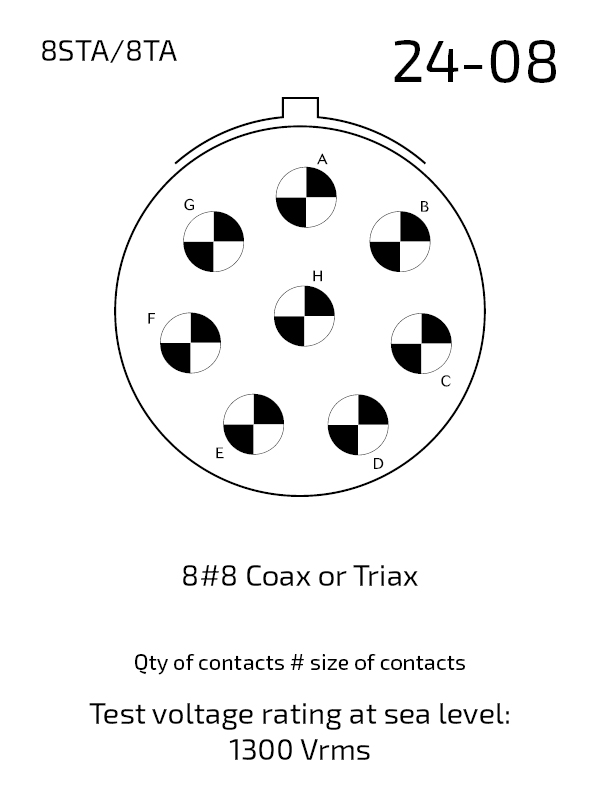

| Contact arrangement: | See the Contact layout image for details |
| Termination type: | Crimp |
| Technology: | Coax, Twinax, Triax, Quadrax Data |
| Current rating: | All Contacts 21-50A |
| Shell size / series: | 24 |
| Shell style: | Free Plug/Cable Mount |
| Shell plating: | Black Zinc |
| Shell material: | Aluminium |
| Shell polarisation/insert orientation: | Normal |
| Sealing: | IP67 |
