8STA6-20-20PN
Eaton (Souriau®) Free Plug/Cable Mount Motorsport Circular Connector, Shell Size 20, 20 Way, Male/Plug, Crimp Contacts , Orientation Normal
SKU
8STA62020PN
Manufacturer
Technical Specification
| Type: | Motorsport Circular Connectors |
|---|---|
| Range: | 8STA |
| Specification: | Commercial |
| Total number of contacts: | 20 |
| Contact gender: | Male/Plug |

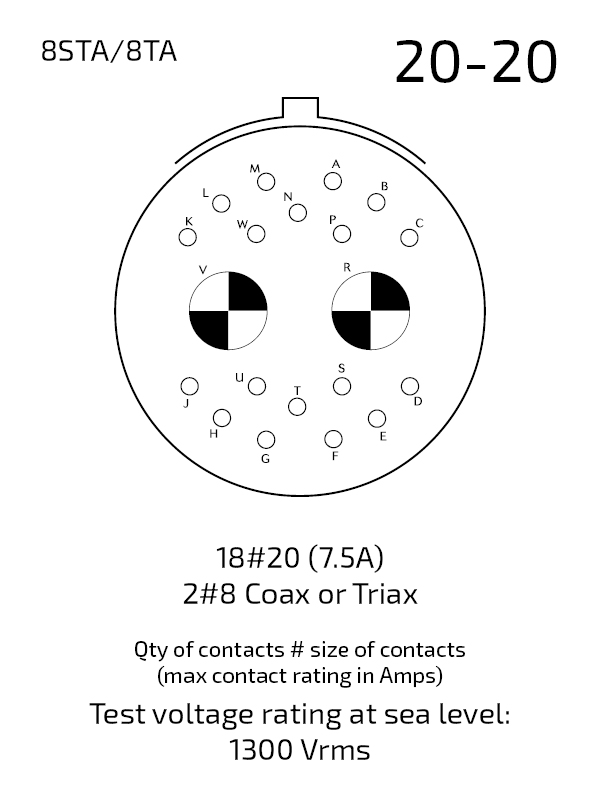

| Contact arrangement: | See the Contact layout image for details |
| Termination type: | Crimp |
| Technology: | Combination/Mixed Planform |
| Current rating: | Mixed Contacts (Refer to Contact Layout) |
| Shell size / series: | 20 |
| Shell style: | Free Plug/Cable Mount |
| Shell plating: | Black Zinc |
| Shell material: | Aluminium |
| Shell polarisation/insert orientation: | Normal |
| Sealing: | IP67 |
