Online Store - Motorsport Circular Connectors
8STA0-24-07SN
Eaton (Souriau®) Fixed Oval Flange Receptacle Motorsport Circular Connector, Shell Size 24, 99 Way, Female/Socket, Crimp Contacts , Orientation Normal
SKU
8STA02407SN
Manufacturer
Technical Specification
| Type: | Motorsport Circular Connectors |
|---|---|
| Range: | 8STA |
| Specification: | Commercial |
| Total number of contacts: | 99 |
| Contact gender: | Female/Socket |

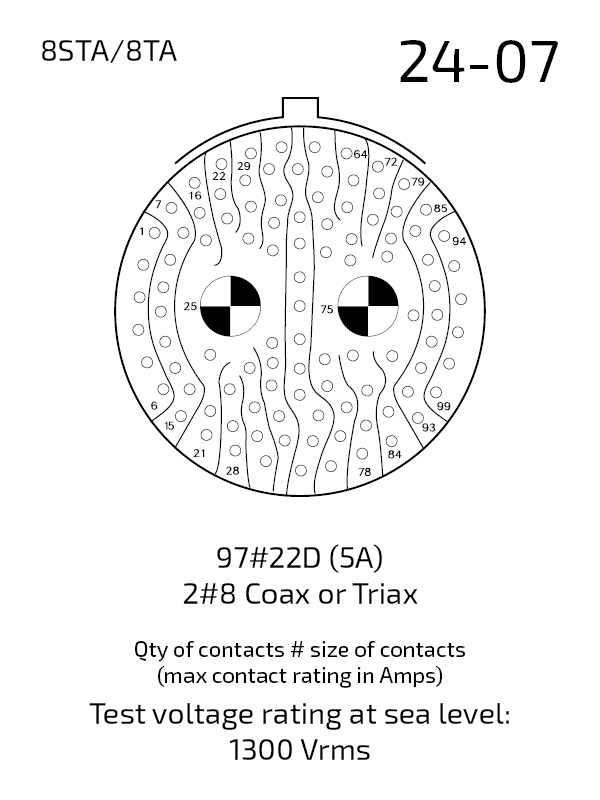

| Contact arrangement: | See the Contact layout image for details |
| Termination type: | Crimp |
| Technology: | Combination/Mixed Planform |
| Current rating: | Mixed Contacts (Refer to Contact Layout) |
| Shell size / series: | 24 |
| Shell style: | Fixed Oval Flange Receptacle |
| Shell plating: | Black Zinc |
| Shell material: | Aluminium |
| Shell polarisation/insert orientation: | Normal |
| Sealing: | IP67 |
Ordering
Price from
£241.10
Price break points
| Quantity | Price |
|---|---|
| 1-9 | £344.43 |
| 10-24 | £275.55 |
| 25-49 | £258.32 |
| 50 + | £241.10 |
Custom Quote
For a custom quote on this product, please get in touch
